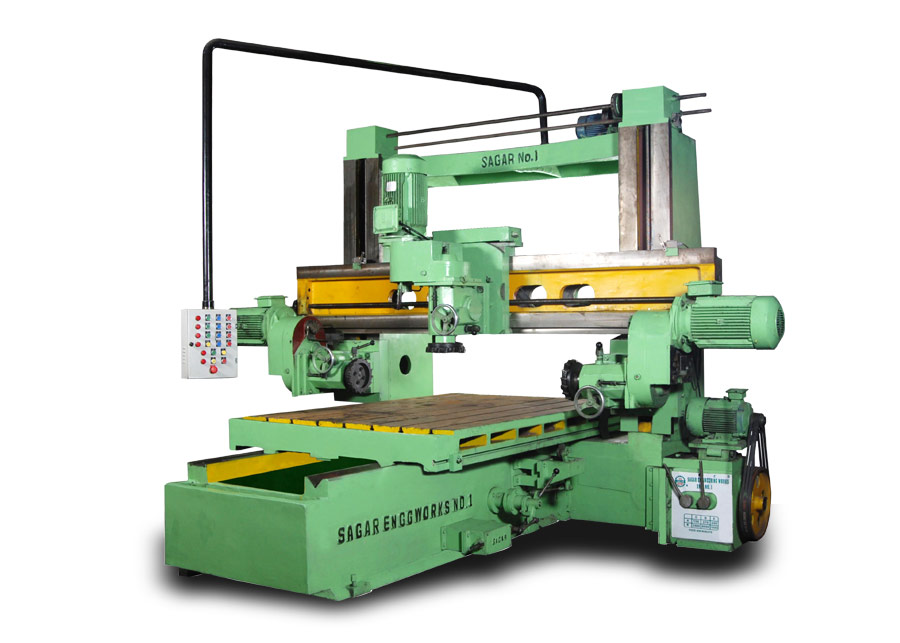

Heavy Duty Plano Miller

A/C Drive in Variable Speed

<< back

Next >>

MODEL - PLM
SPECIFICATONS
Length of Stroke in Feet as required 6ft to 40ft (1800mm to 12000mm)
Width between columns	4ft	5ft	6ft	7ft	8ft
Capacity (in mm)
Width between columns	1220	1524	1828	2133	2430
Height under Cross Rail	1220	1524	1828	1828	1828
TABLE:
Working Surface Length As per Length of stroke plus 250 mm
No. of T-Slots	5	6	6	7	7
Width of T-Slots	19	19	19	19	19
Distance between T-Slots	127	148	190	190	190
MILLING HEADS
No of Milling Heads One, Two or Three as per order
Horizontal Traverse of one Milling
Head on Cross Rail	1200	1500	1800	2100	2400
Max Swivef of Milling Head to either side	?50?	?50?	?50?	?50?	?50?
Cross rail
Vertical Traverse of cross rail mm (elevating)	1200	1500	1800	1850	1850
Elevating Traverse of side Milling head	850	1150	1400	1450	1450

MILLING HEADS (SPECIFICATIONS)
MILLING HEADS	GENERAL DUTY		HEAVY DUTY	EXTRA HEAVY DUTY
No of Speeds	6		6	6
Range of Speeds In RPM	90 To 570 RPM.		80 To 500 RPM	50 To 325 RPM
Motor 3 Phase 440 Volts	5 H.P./1440 RPM		10 H.P./1440 RPM	20 H.P.
Spindle Dia at Nose.	85mm.		128mm.	140mm.
Vertical traverse of Quill.	75mm		100mm.	125mm.
Vertical traverse operation	Manual		Manual	Manual
Micro feed Manual	0.05 mm.		0.05 mm	0.05 mm
Feed of Table for Milling	20 mm to 200 mm		20 mm to 200 mm	20 mm to 200 mm
Cutter Dia	125 mm to 150 mm		150 mm to 300 mm	300 mm to 450 mm
Spindle Nose Taper	ISO-40		ISO-50	ISO-50
Holding of Cutter	Bolts on spindle noises
*We reserve the right to change design, colour or specification without notice *
